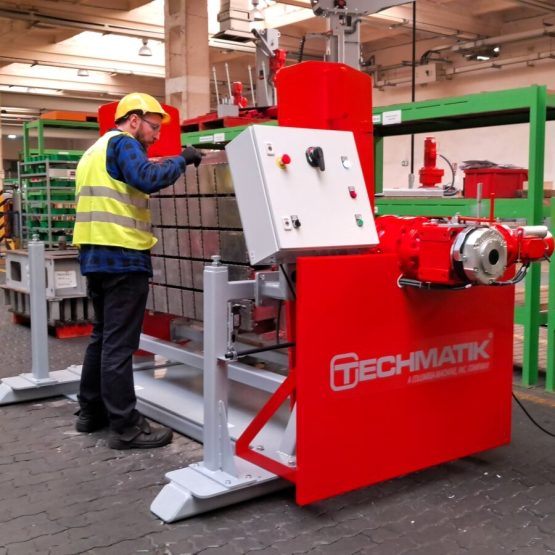

Mold Inspection Device

The Mold and Tamper Head Inspection Device is an essential tool for maintaining top production standards.
By enabling quick and accurate detection of potential wear or damage, it supports preventive maintenance and reduces downtime, helping manufacturers maintain uninterrupted, high-quality production.

Precision and Reliability in Mold Maintenance

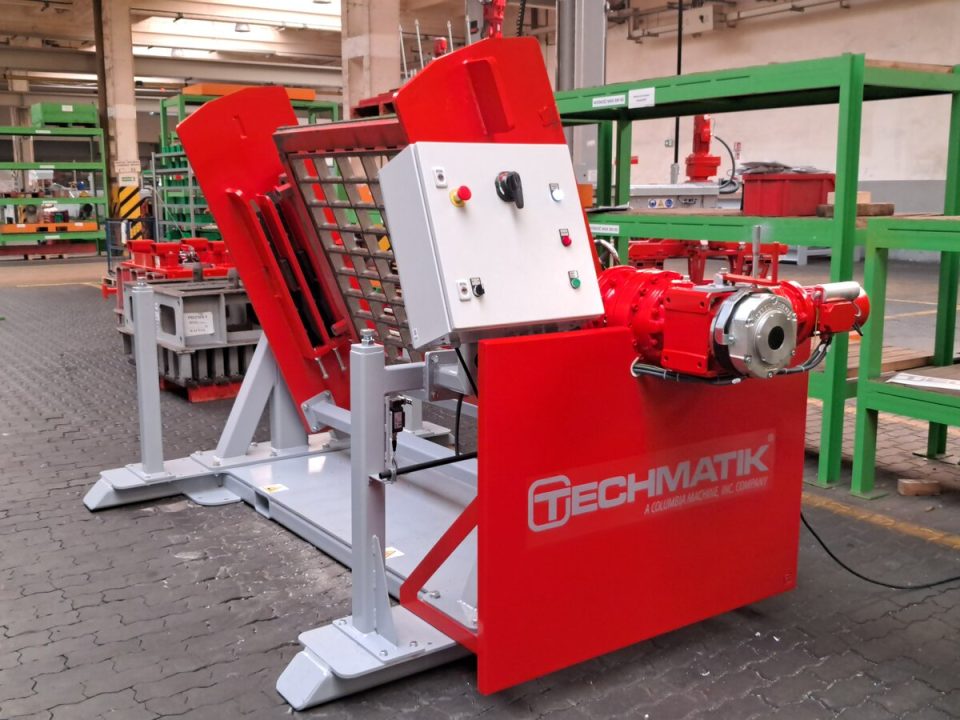

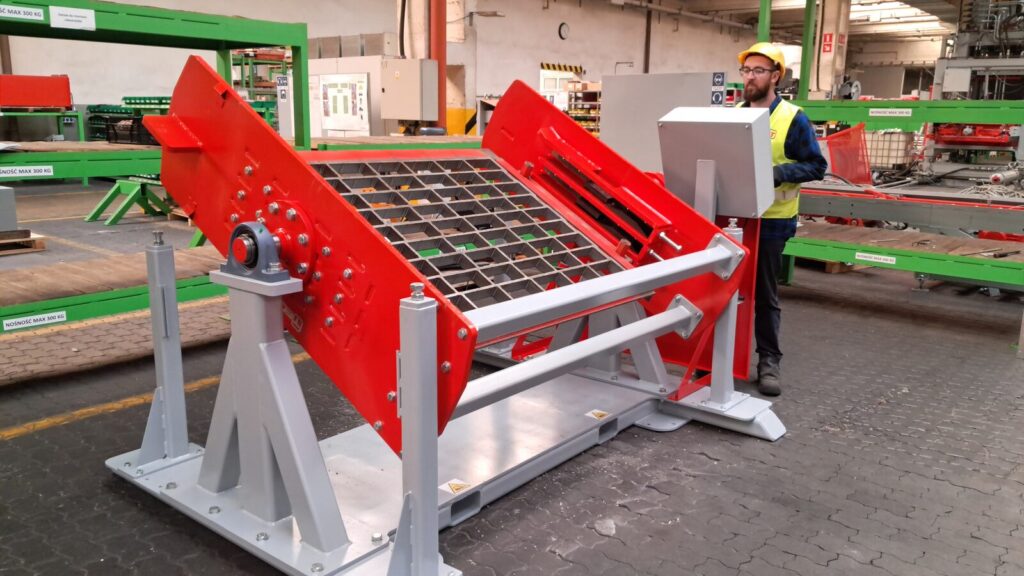

The Mold and Tamper Head Inspection Device is designed for precise control and maintenance of mold bottoms and tamper heads used in concrete block machines. With its advanced design and ergonomic operation, it is an indispensable tool in industrial facilities where quality, accuracy, and production continuity are top priorities.

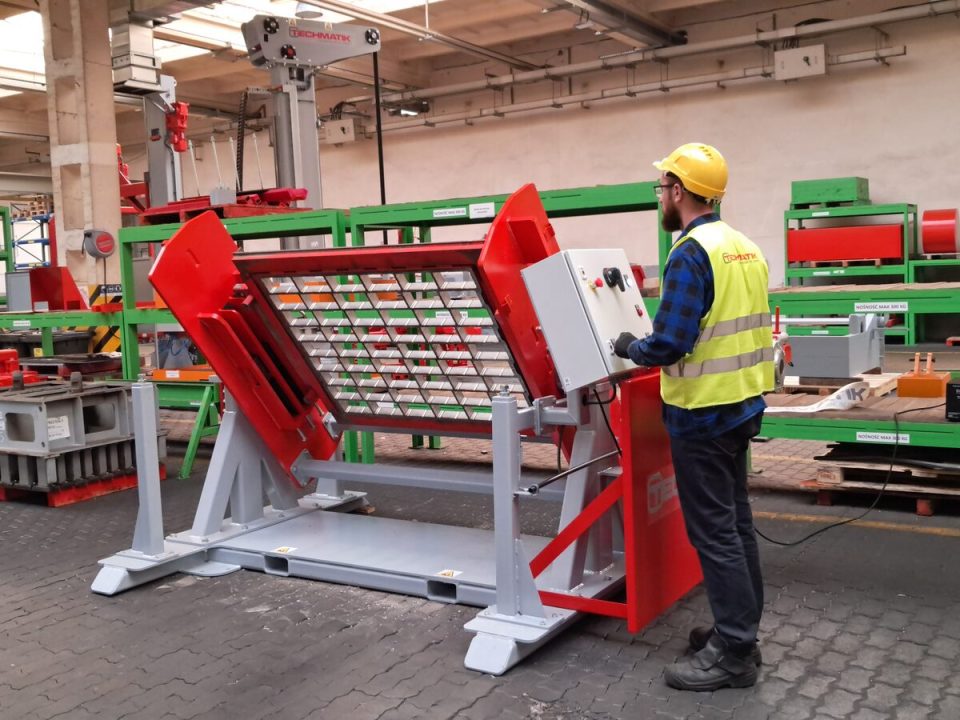

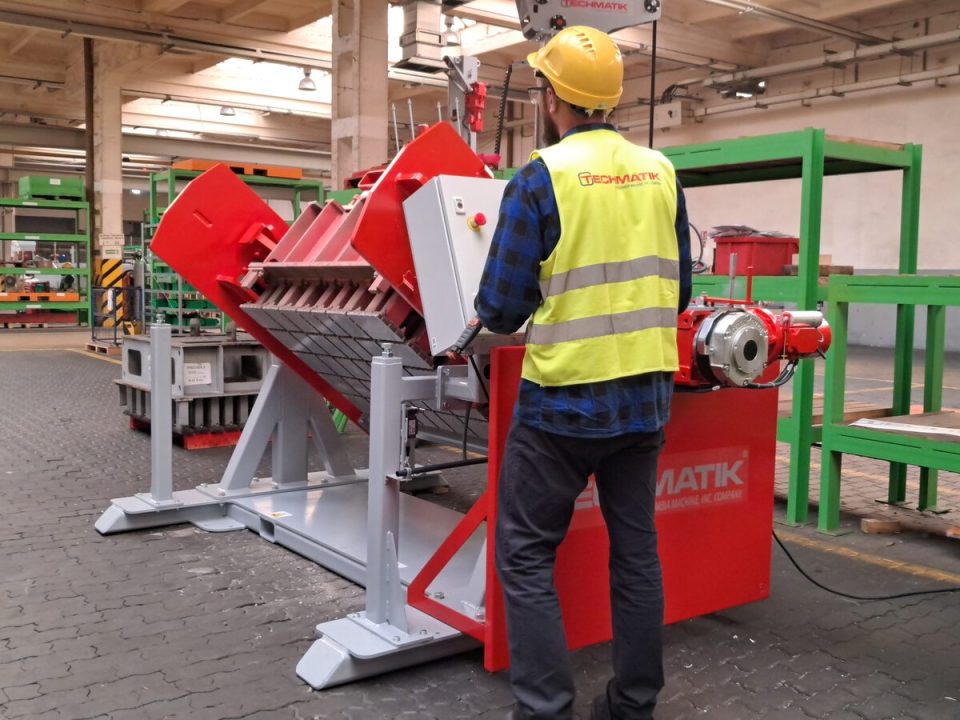

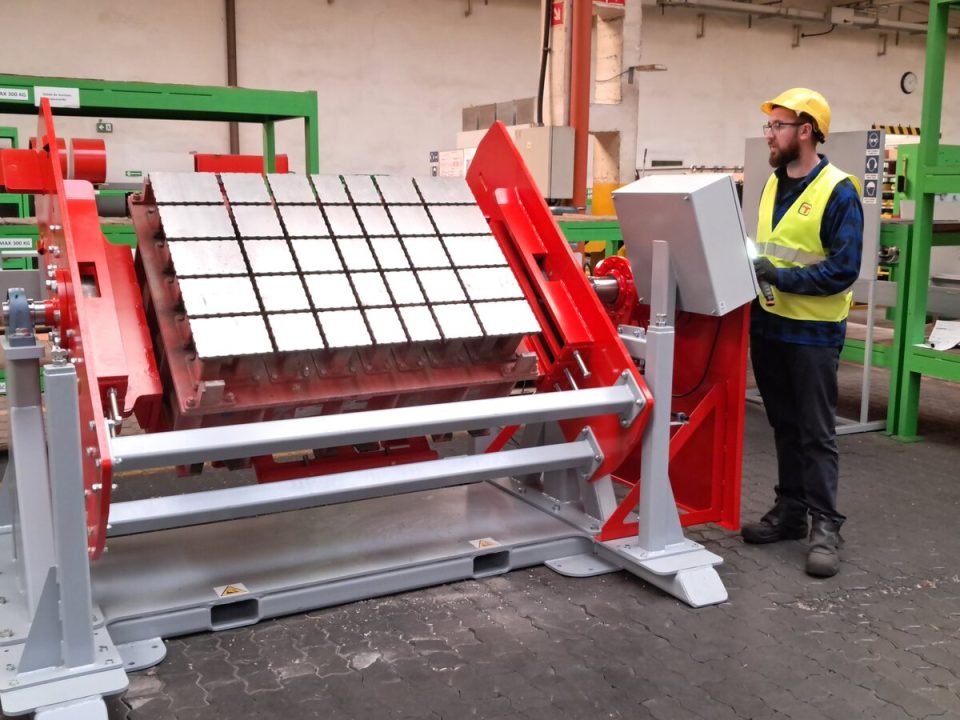

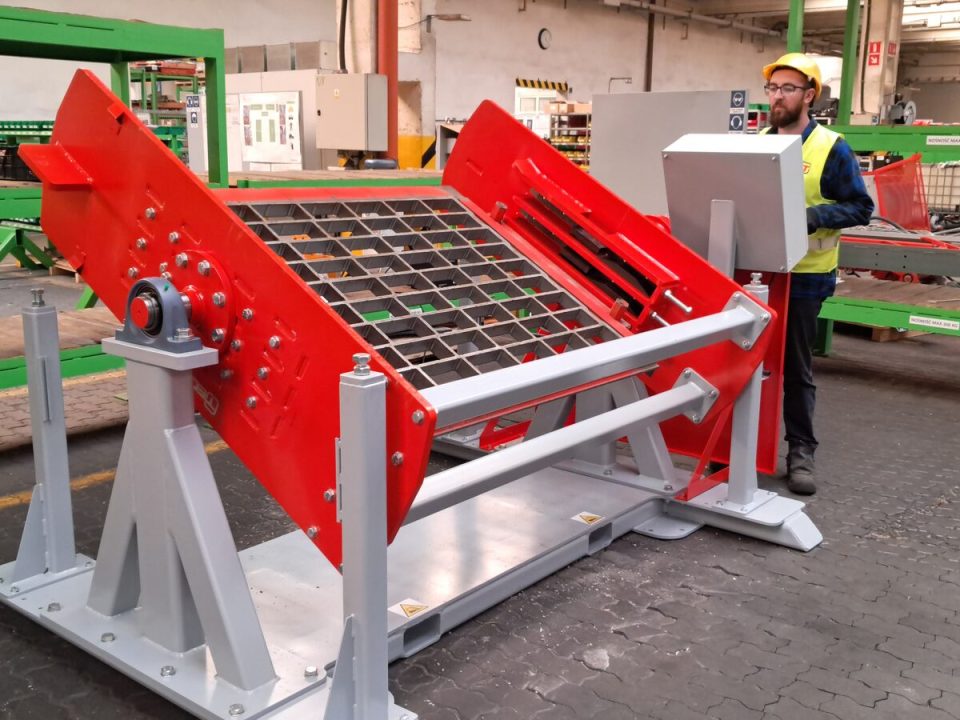

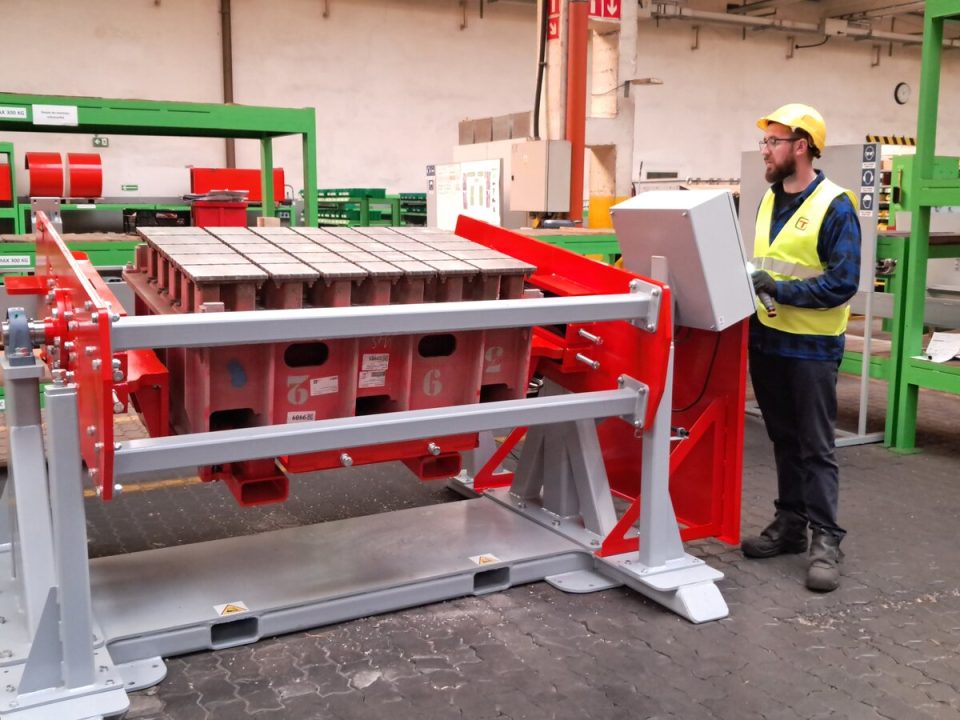

180° Mold Rotation

• Enables safe and convenient 180° rotation of the mold or tamper head.
• Provides full access to all surfaces, ensuring detailed visual and technical inspection of both upper and lower parts.
• Speeds up maintenance and enhances inspection precision.

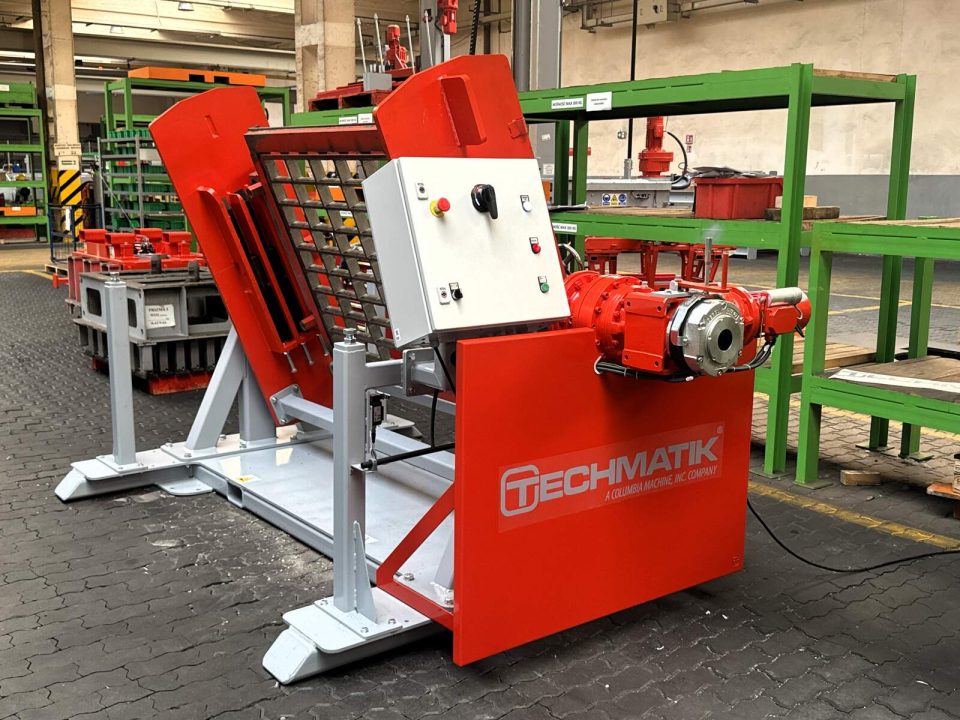

Unmatched safety – Dual braking system

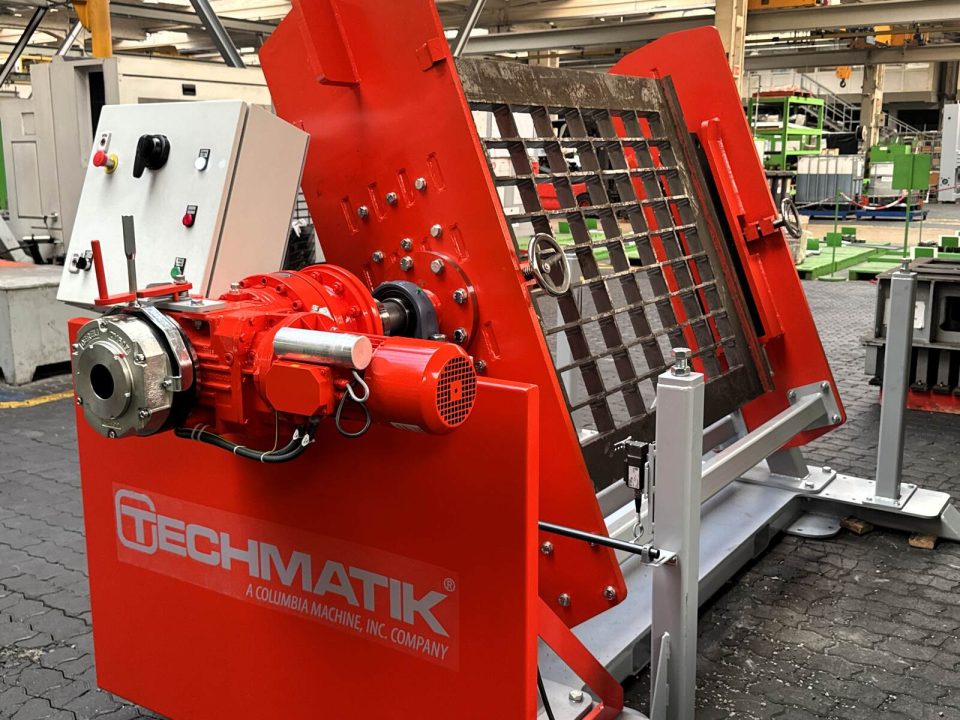

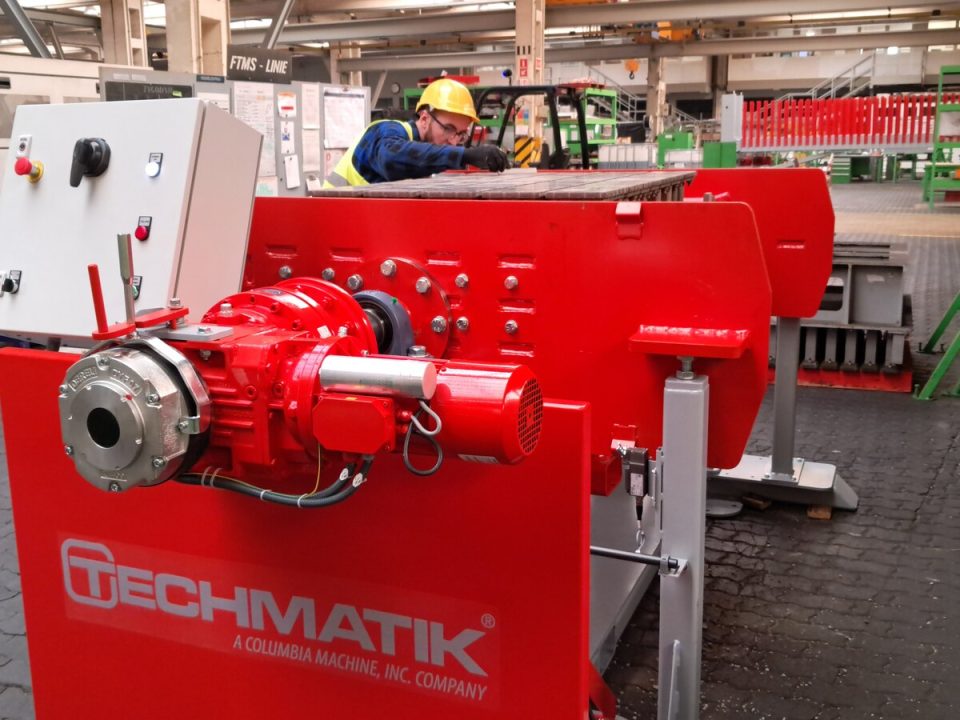

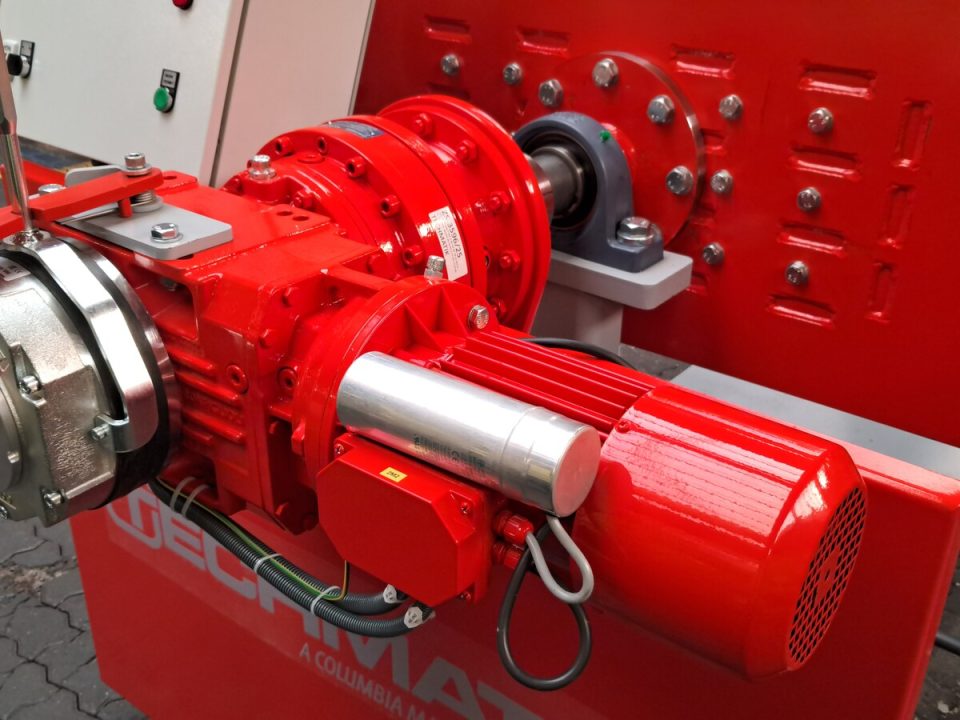

The device features a dual brake mechanism – on both the gearbox and the motor.
In case one system fails, the other remains active, providing an extra layer of safety during rotation.
This innovative design significantly increases operational security and reliability — a feature unique to Techmatik, not available in competing solutions worldwide.

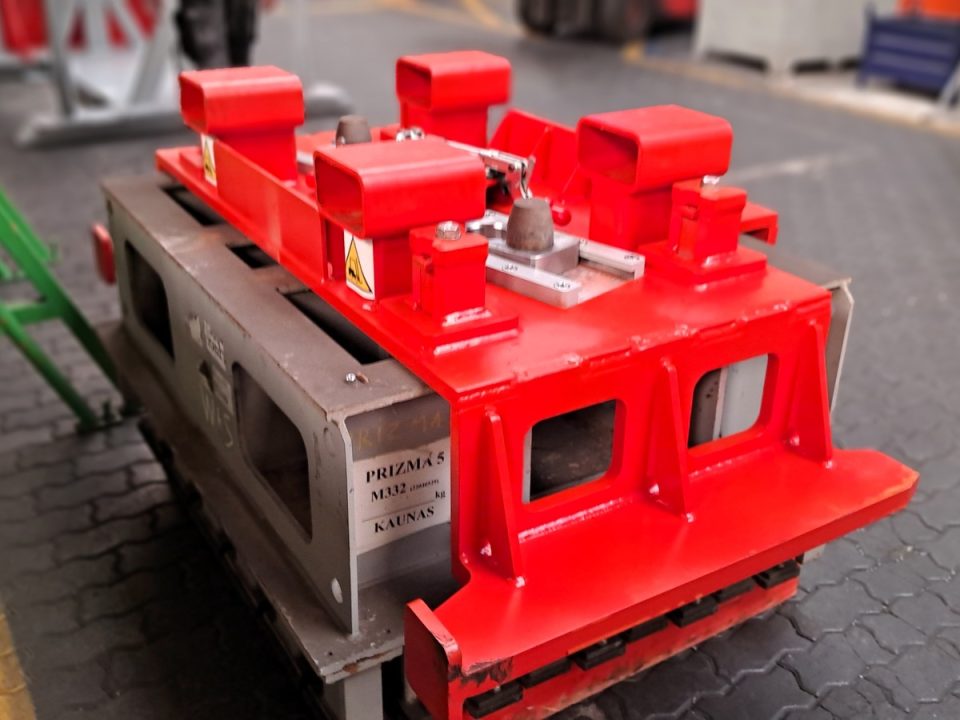

Dual Mounting Options

• Allows mounting of the tamper head in two configurations, providing flexibility to adapt the device to various production needs.

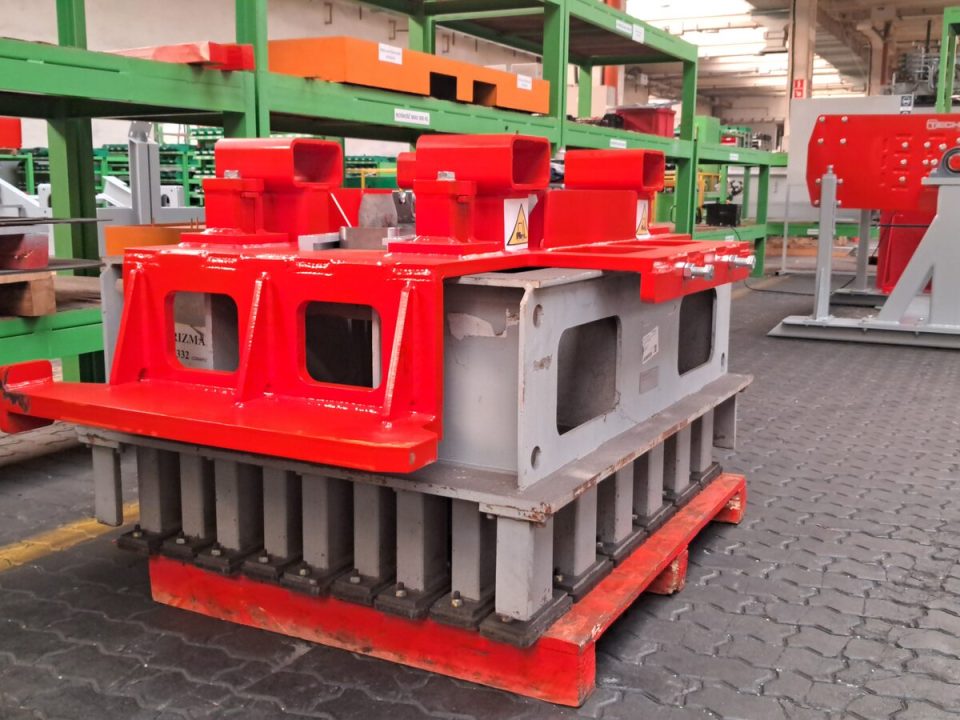

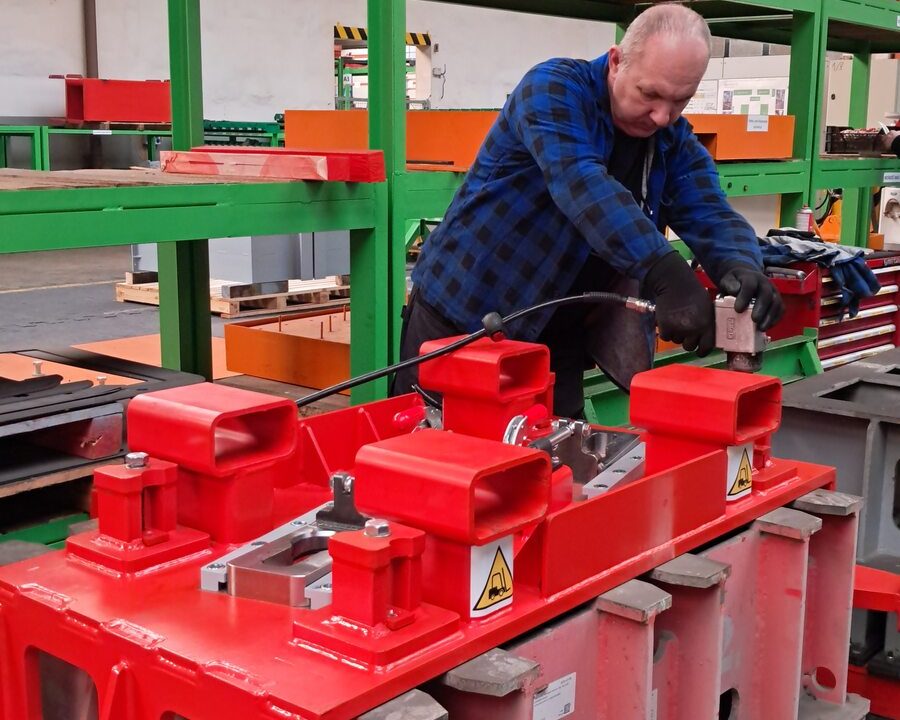

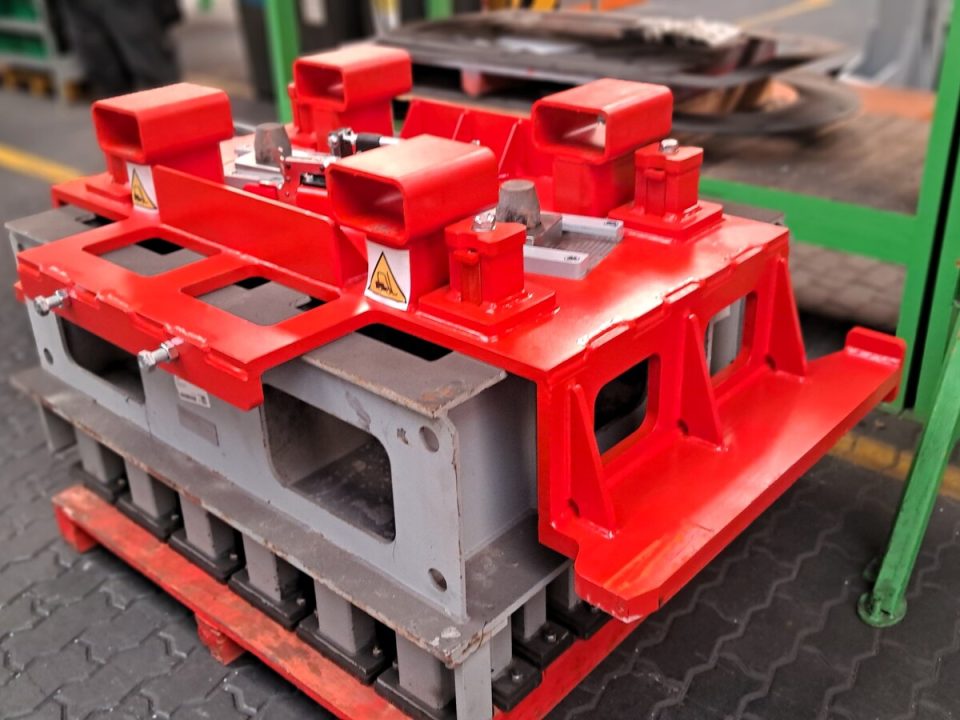

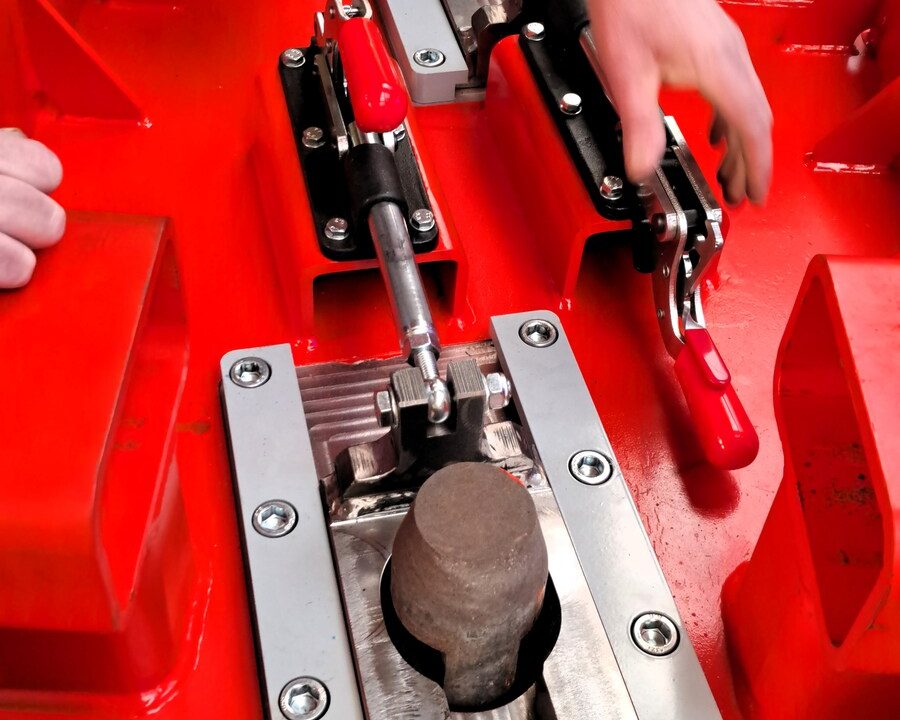

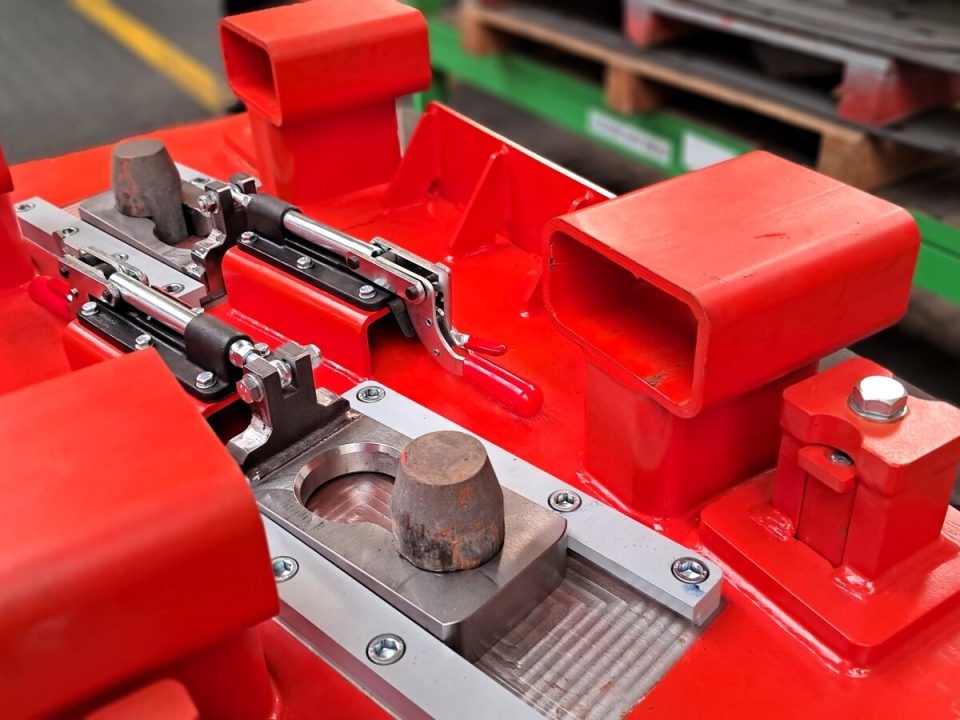

  One device serves multiple machine platforms thanks to a precision‑machined adapter plate compatible with:

  • Masa pin‑style heads
  • Rekers, Hess, and Omag slotted airbag systems*

  For plants running a diversified equipment fleet, this universal compatibility streamlines tooling management and reduces capital expenditures.



  *Other machine options available upon request

Mobility and Ease of Use

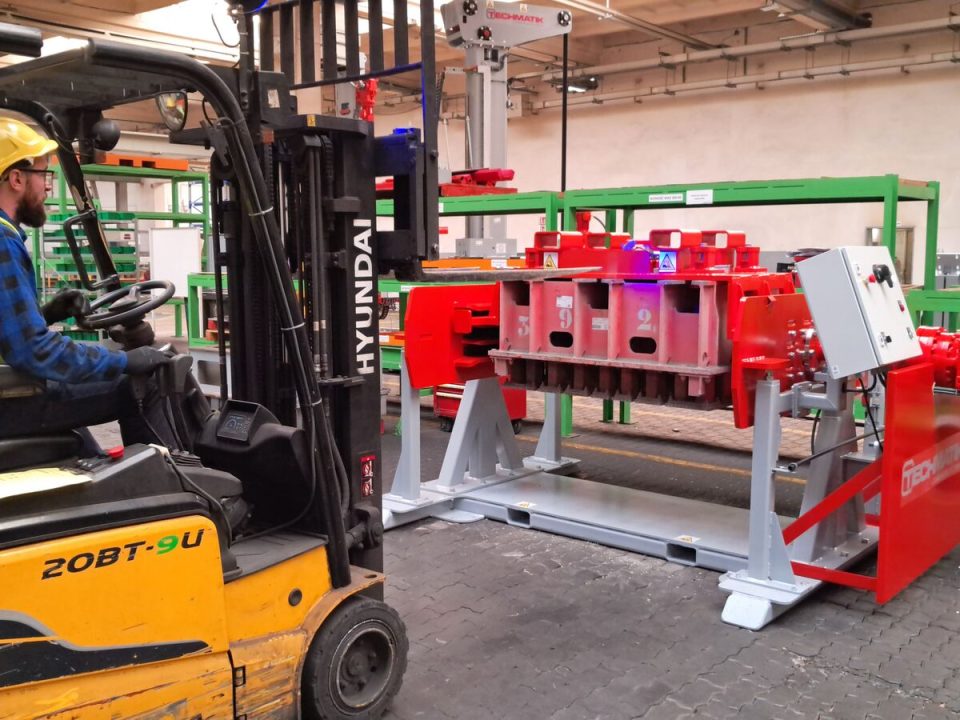

• Designed for easy transportation with a forklift.
• Facilitates quick relocation between workstations or departments, improving operational efficiency and workflow flexibility.

Key Benefits for Your Maintenance Team

• Full Access for Inspection and Maintenance – easily rotate molds or tamper heads by 180°, giving your team unrestricted access to every part for cleaning, inspection, and servicing.
• Simplified Maintenance Process – perform inspection, cleaning, and minor repairs directly on the device, without the need for additional lifting equipment or disassembly.
• Improved Safety at Every Step – the dual braking system (on gearbox and motor) guarantees maximum stability and operator safety during mold rotation.
• Faster and More Efficient Work – reduce downtime and speed up the inspection process thanks to convenient access and ergonomic operation.
• Longer Mold Service Life – by enabling regular and precise inspection, the device helps prevent damage, ensuring molds remain in top condition for longer.
• Ease of Operation – intuitive controls and stable construction make the inspection process smoother and less physically demanding for maintenance staff.
• Ready to Move – designed for easy transportation by forklift, allowing quick relocation between workstations or departments.
